Arduino Compatible Robot Microcontroller Board

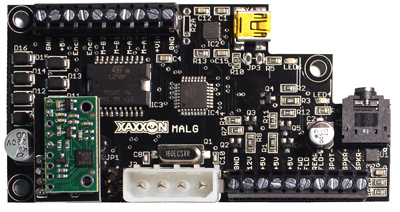

Xaxxon MALG Microcontroller PCB (Motors Audio Lights Gyro)
The Xaxxon MALG PCB controls DC motors, provides audio amplification, powers LED lighting, incorporates a 3-axis gyroscope, and has output for a standard servo motor. It runs on an Atmel ATMega 328 microcontroller, is fully Arduino compatible, and communicates with a host via USB.
A feature packed beast, perfect for differential-drive robots. It comes standard with the Oculus Prime ROV. (This board replaces the now retired MALG PCB revA.)
out of stock
Part No.: XAX-075
This product is RETIRED
replacement: MALG PCB (v3)
Xaxxon MALG/Arduino Microcontroller PCB connection diagram
Datasheet (download)
Schematic (download)
Example Firmware Code
(Oculus Prime's)
Open Hardware Logo ROHS logo

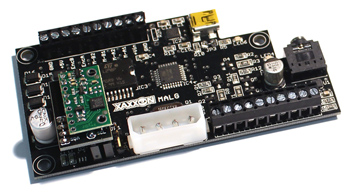

Xaxxon MALG PCB revB iso
Specifications:
  • Atmel ATMEGA 328P microcontroller, 16 Mhz
  • 5V primary power via ATX-Molex input, or USB (optional via JP3 jumper), or external 5V in
  • L298 H-bridge motor controller
  • Motor rotational encoder input (quadrature optional, requires R2A resistor)
  • Gyro ST L3GD20 3 axis, on included daughter board Pololu item #2125
  • CP2104 USB-UART bridge
  • Mini-B USB female input
  • Audio amplifier TPA2005 class-D mono
  • 3.5mm audio input
  • +/- speaker output
  • 3x high-intensity LED output PWM control
  • Firmware can be uploaded via Arduino IDE
  • Overall size: 99mm x 51mm [3.9in x 2.0in]
  • RoHS compliant
